class derived from LightSrc. It represents a plane wave described by the electric field \( \vec{E}(\vec{P})=\vec{E}_0 \cdot e^{i\vec{k}\cdot\Delta\vec{P}} \) More...

#include <lightsrc.h>

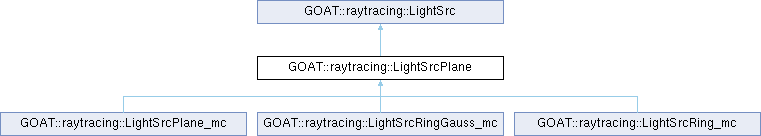

Inheritance diagram for GOAT::raytracing::LightSrcPlane:

Public Member Functions
double	area ()
	area A of the light source, \( A=d^2\)
void	binReadItem (std::ifstream &os)
	reads content of LightSrc from a binary file, represented by os (has to be specified by the derived classes)
void	binWriteItem (std::ofstream &os)
	writes content of LightSrc in a binary file, represented by is (has to be specified by the derived classes)focuspos
	LightSrcPlane (const LightSrcPlane &)
	copy Constructor
	LightSrcPlane (maths::Vector< double > Pos, int N, double wvl, double D=100.0, maths::Vector< std::complex< double > > Pol=maths::Vector< std::complex< double > >(0.0, 1.0, 0.0), int raytype=LIGHTSRC_RAYTYPE_IRAY, double r0=100.0)
	constructor with the following parameters : Pos: position of the light source, k : main direction of the light source, N : number of rays per direction(total number of all rays is N* N)
	LightSrcPlane (void)
int	next (GOAT::raytracing::RayBase *ray)
	Destructor, not needed.
int	next (IRay &S)
	gives the next ray for the following calculations
int	next (Ray_pow &S)
	gives the next ray for the following calculations
int	next (tubedRay &S)
	gives the next ray for the following calculations
	~LightSrcPlane (void)
Public Member Functions inherited from GOAT::raytracing::LightSrc
void	addObject (ObjectShape *obj)
	add single object to the object list
void	adjustDirection ()
void	binRead (std::ifstream &is)
	writes content of LightSrc in a binary file, represented by is
void	binWrite (std::ofstream &os)
	reads content of LightSrc from a binary file, represented by os
void	clearObjects ()
	clear object list
double	getDensity ()
	returns the ray density, i.e. the number of rays per unit length (=D/N)
maths::Vector< std::complex< double > >	getInitPol ()
double	getIsum1 ()
double	getIsum2 ()
maths::Vector< double >	getk ()
	returns the main direction of the light source
int	getNumObjs ()
	returns the number of Objects (only needed, when used seperately outside scene)
int	getNumRays ()
	returns the number of rays (per direction in space)
int	getNumRaysRT ()
ObjectShape *	getObject (int i)
	returns i-th item in the object list
maths::Vector< double >	getPos ()
	returns the position of the light source. This is the center of the square area of the light source
double	getWavelength ()
double	getWavenumber ()
	LightSrc ()
	LightSrc (const LightSrc &)
	Copy constructor.
void	ObjectList (int Anz, std::vector< ObjectShape * > Obj)
int	rayType ()
	returns the current ray type
void	removeObject (ObjectShape *obj)
	remove object from the object list
void	reset ()
	Reset everything (counting starts from the beginning)
void	setD (double D)
	sets the width of the light source (this resets also the ray counter)
void	setD (double D1, double D2)
void	setk (const maths::Vector< double > &k)
	sets the main direction of the light source
void	setN0 (std::complex< double > n0)
	sets the complex valued refractive index of the intermediate medium
void	setNumRays (int N)
void	setNumRaysRT (int numRaysRT)
void	setObject (ObjectShape *O, int i=-1)
	exchanges i-th object in the object list
void	setPol (maths::Vector< std::complex< double > > pol)
	sets the polarisation
void	setPos (maths::Vector< double > P)
	sets the position of the light source. This is the center of the square area of the light source
void	setR0 (double r0)
	sets the radius of the calculation sphere
void	setWavelength (double wvl)
void	setWavenumber (double k0)
	~LightSrc (void)

Additional Inherited Members
Public Attributes inherited from GOAT::raytracing::LightSrc
double	D
	width of the square light source area
double	D1
double	D2
	width in the e1- and the e2-direction (used only for _mc versions of LightSrc)
double	density
	ray density, i.e. distance between two neighboring rays
maths::Vector< double >	e1
maths::Vector< double >	e2
	unit vectors that span the light source area
int	i1
	first index of the ray inside the starting area (for internal use, -1 if the calculation has not yet been started)
int	i2
	second index of the ray inside the starting area (for internal use, -1 if the calculation has not yet been started)
maths::Vector< std::complex< double > >	initPol
	Polarisation, if the k-Vector points in z-direction.
maths::Vector< double >	k
	main direction of the light source
int	N =10000
	number of rays (per direction)
std::complex< double >	n0
	refractive index of the intermediate medium
int	numObjs
	number of objects
std::vector< ObjectShape * >	Obj
	list of all objects
double	P0 =1.0
	power
double	Pall
	overall Power
maths::Vector< std::complex< double > >	Pol
	polarisation (default: (0.0, 1.0, 0.0)
maths::Vector< std::complex< double > >	Pol2
	second polarisation (used by IRay)
int	polType
	Polarisationsrichtung (s.o.)
maths::Vector< double >	Pos
	position of the light source (center of the square area of the light source)
double	r0 =1.0
	radius of the calculation sphere
int	rayCounter =0
int	raytype
	Strahltyp : ray oder ISTRAHL (=RAY oder IRAY)
bool	suppress_phase_progress = false
	if set true, the phase won't be changed when calling a next method (needed for USP-calculations)
int	type
	type of the light source
Protected Attributes inherited from GOAT::raytracing::LightSrc
double	Isum1
double	Isum2
double	k0
	wavenumber (i.e. \( \frac{2\pi}{\lambda}\)
int	numRaysRT =20
	used in GOATvis to determine number of rays for ray representation
maths::Vector< double >	rotVec =maths::Vector<double>(1,0,0)
	Vector which holds the spherical coordinates \(r\), \(\vartheta\) and \(\varphi\) of the direction vector k.
double	wvl =1
	wavelength

Detailed Description

class derived from LightSrc. It represents a plane wave described by the electric field \( \vec{E}(\vec{P})=\vec{E}_0 \cdot e^{i\vec{k}\cdot\Delta\vec{P}} \)

Definition at line 196 of file lightsrc.h.

Constructor & Destructor Documentation

◆ LightSrcPlane() [1/3]

GOAT::raytracing::LightSrcPlane::LightSrcPlane ( void )

◆ LightSrcPlane() [2/3]

GOAT::raytracing::LightSrcPlane::LightSrcPlane	(	maths::Vector< double >	Pos,
		int	N,
		double	wvl,
		double	D = 100.0,
		maths::Vector< std::complex< double > >	Pol = maths::Vector< std::complex< double > >(0.0, 1.0, 0.0),
		int	raytype = LIGHTSRC_RAYTYPE_IRAY,
		double	r0 = 100.0 )

constructor with the following parameters : Pos: position of the light source, k : main direction of the light source, N : number of rays per direction(total number of all rays is N* N)

Main constructor

Parameters

Pos	Center of the start area
N	Number of rays (per direction, total number of rays:N*N)
wvl	Wavelength
D	Edge length of the quadratic start area (=size of the light source)
Pol	direction of the polarisation
